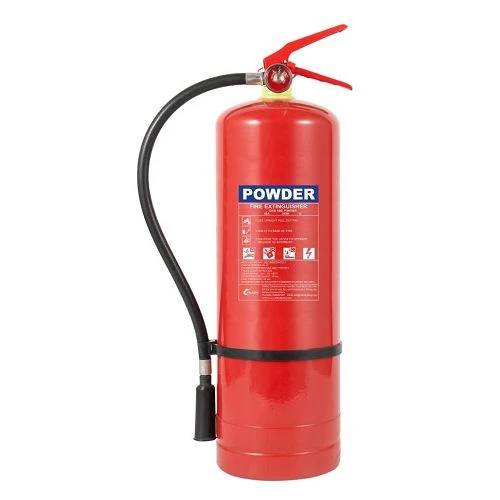

The 12kg ABC Dry Powder Fire Extinguisher is a versatile, high-capacity firefighting unit designed to combat multiple classes of fires effectively. Filled with a finely ground ABC powder (ammonium phosphate-based compound), it rapidly suppresses flames by interrupting the chemical chain reaction of fire. Its robust construction and wide application range make it ideal for industrial, commercial, and vehicular settings.

ABC Powder:

A multi-purpose extinguishing agent (primarily monoammonium phosphate).

Discharge Time:

Duration of continuous operation when fully activated.

Non-Conductive:

Safe for electrical fires up to 1000V (always de-energize if possible).

This description balances technical accuracy with practical usage information. Let me know if you need a shorter version or specific details about components (e.g., valve type, nozzle design)!

There are three options available：the foot ring type(designed for Mid- Easter market), the point bottom type(designed in coordination with CE, EN3)

FOOT RING TYPE

Features：

Suitable For Class A B C Fires
Stretch the foot ring type cylinder
Filled in High quality ABC dry powder
Produced under ISO9001 Quality System

Technical Descriptions

Model No	CHP01-10
Capicity	12kg
Out-Diameter(mm)	180
Cylinder Height(mm)	630
Volume(L)	14.6
Gross Weight(kg)	16.6
Material	SPCC
Max Working pressure(bar)	18
Test pressure(bar)	29
Temperature Range(℃)	-20℃~+60℃
Fire Rate	43A233B
Packing Size(cm)	191972.5

POINT BOTTOM TYPE

Features：

Suitable For Class A B C Fires
Stretch the foot ring type cylinder
Filled in High quality ABC dry powder,standard EN615
Designed according to standard EN3-8
Produced under ISO9001 Quality System

Technical Descriptions

Model No	CHP2-09
Capicity	12kg
Out-Diameter(mm)	185
Cylinder Height(mm)	560
Volume(L)	13.3
Gross Weight(kg)	17.2
Material	SPCC
Max Working pressure(bar)	18
Test pressure(bar)	29
Temperature Range(℃)	-30℃～+60℃
Fire Rate	55A 233B
Packing Size(cm)	191966/ 1PCS
